Three chips, three clocks, a color that never repeats

Three 555 timers blink the red, green and blue of one LED at unrelated rates, so the colour drifts for ages before it repeats.

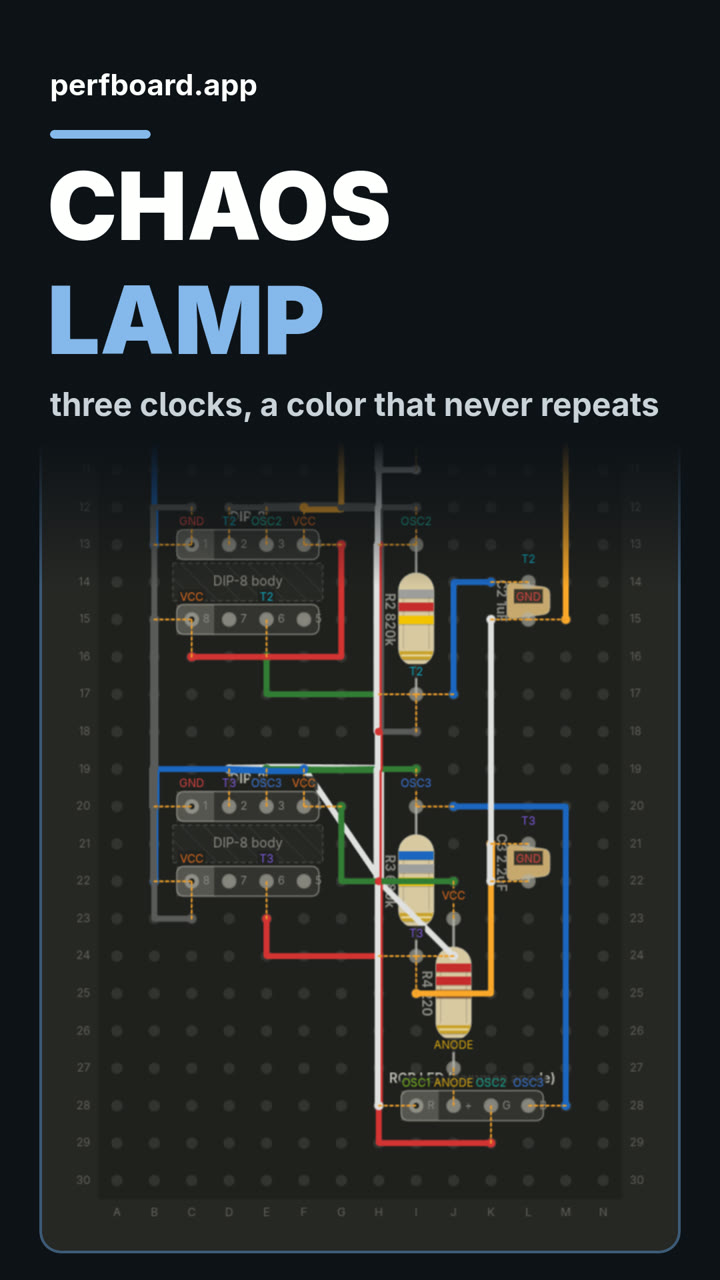

Component side layout of Three chips, three clocks, a color that never repeats on a perfboard 14 by 30 holes
14 × 30 holes · 12 parts · 27 wires

Free build sheet

The parts, every wire with its length and bend points, a bend guide, both sides of the board and checkboxes to track your progress. Print it or keep it open at the bench.

Open the build sheet

What you need

12 parts on a perfboard 14 × 30 holes, plus hookup wire.

QtyPartWhere to buy
2
Ceramic Cap1uF
C1, C2
Buy Ceramic Cap on Amazon
1
Ceramic Cap2.2uF
C3
Buy Ceramic Cap on Amazon
1
Power Input (2-pin)
J1
1
RGB LED (common anode)
Q1
Buy RGB LED (common anode) on Amazon
1
Resistor (axial)470k
R1
Buy Resistor (axial) on Amazon
1
Resistor (axial)820k
R2
Buy Resistor (axial) on Amazon
1
Resistor (axial)680k
R3
Buy Resistor (axial) on Amazon
1
Resistor (axial)220
R4
Buy Resistor (axial) on Amazon
3
DIP-8
U1, U2, U3

Check every pin against the datasheet of the exact part in your hands before wiring.

As an Amazon Associate I earn from qualifying purchases.

Cut list

27 wires, 790 mm (31.1 in) in total, in the order the build sheet cuts them. Wire numbers match the build sheet. Each length includes 5 mm per end to go through the hole.

WireColour and netLength
12
BlackOSC2
I12 → E12
20mm
18
BlackVCC
C23 → B15
33mm
24
BlackGND
C12 → B20
33mm
6
BlackT2
I18 → D12
38mm
5
BlueT2
J17 → K14
20mm
17
BlueVCC
F19 → B22
28mm
23
BlueGND
B6 → B13
28mm
11
BlueOSC3
J20 → M28
38mm
4
GreenT2
H17 → E16
20mm
10
GreenOSC3
I19 → E19
20mm
22
GreenGND
G5 → C5
20mm
16
GreenVCC
J22 → G20
23mm
1
RedT1
H10 → E9
20mm
7
RedT3
H24 → E23
20mm
19
RedVCC
C16 → G13
28mm
25
RedGND
H4 → K8
28mm
13
RedOSC2
H13 → K29
58mm
21
WhiteVCC
E4 → B8
28mm
27
WhiteGND
K15 → K22
28mm
9
WhiteT3
J24 → D19
35mm
3
WhiteT1
I11 → D5
38mm
15
WhiteOSC1
H6 → H28
66mm
2
YellowT1
J10 → K7
20mm
14
YellowOSC1
I5 → E5
20mm
8
YellowT3
I25 → K21
25mm
20
YellowVCC
F12 → G6
28mm
26
YellowGND
M8 → M15
28mm

About this build

A chaos lamp with no microcontroller. Three NE555 timers each run as an astable oscillator, and each one blinks one colour of a common anode RGB LED.

The timing parts are picked so the three rates don't line up: 470k, 820k and 680k resistors on 1uF, 1uF and 2.2uF caps. Because the three clocks are independent, the mixed colour keeps drifting for a very long time before the pattern comes back around.

To fit the board, all three colours share one 220 ohm resistor on the common anode. It works, but the colours won't be evenly bright. If you want them even, give each cathode its own resistor.
